Protractor
Is an end-to-end testing JavaScript solution.
- Executes the real application using selenium
- Run the tests against it

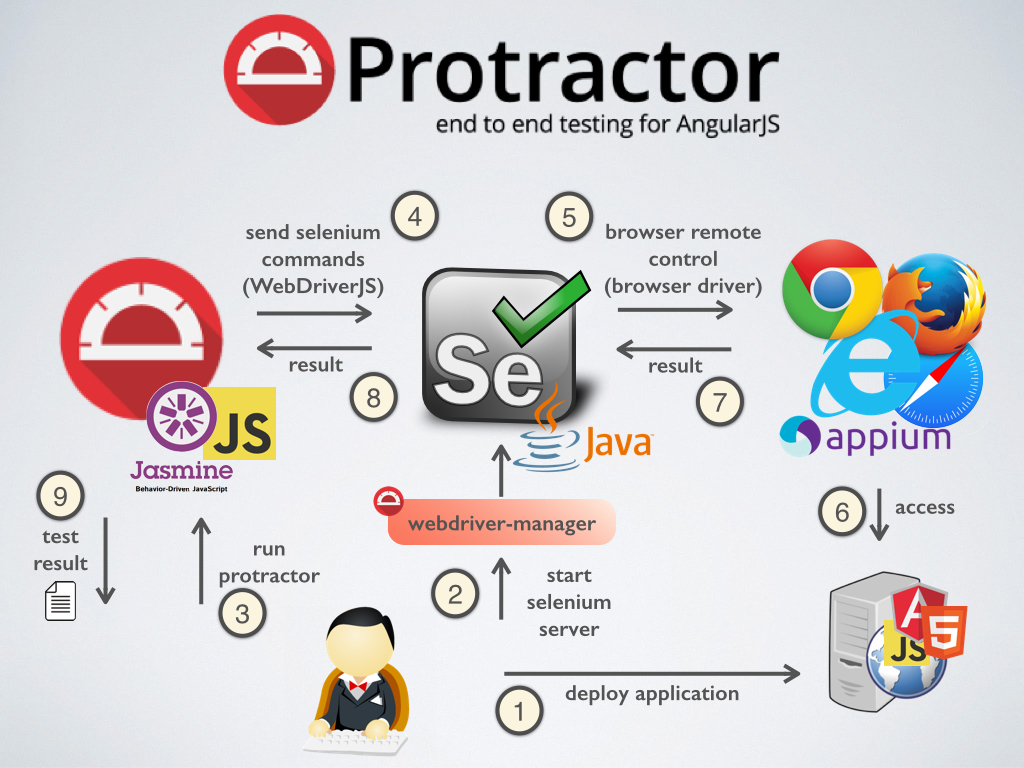

Protractor is nothing but a wrapper over the Selenium WebDriverJS Api that translates its succinct code and methods to WebDriver JS methods. That said, you can use WebDriverJS methods too inside your e2e script.
UI Tests
package.json
NPM dependency configs.
{
"name": "ui",
"version": "1.0.0",
"description": "This is a reference implementation of the Selenium test using javascript.",
"main": "conf.js",
"directories": {
"test": "test"
},
"scripts": {
"test": "echo \"Error: no test specified\" && exit 1"
},
"author": "",
"license": "ISC",
"dependencies": {
"axios": "0.19.0",
"dotenv": "8.1.0",
"jasmine-allure-reporter": "^0.2.3",
"protractor": "^5.4.4",
"protractor-jasmine2-html-reporter": "0.0.7",
"proxy-agent": "3.1.0",
"request": "2.88.0",
"request-promise": "^4.2.4"
},
"devDependencies": {
"jasmine-reporters": "^2.0.0"
}
}
Execution script
This script sets the environment variables, which then are passed into the config files and then may be used in the tests.
if [ $# -eq 0 ]
then
echo "Please provide the environment: dev or stage"
exit 1
fi
#update IDs prior to processing Spec
if [ $1 == 'stage' ]
then
export APIURL=my.api.com
export SPACE_NAME="1.001"
export BUILDINGIDB=03fjvA5B1CWOG33uprLUQT
export SPACE_ISPARTOF=b5c703a7-627d-4562-ba2c-6399557c670d
export DEVICE_NAME="Sensor_block:T&LQ:1138260"
export DEVICE_SOURCE="3TYhTs\$S924vrYvWDC_1_z"
export DEVICE_TAG=air
export DEVICE_ISLOCATEDIN=233ffa56-c569-4ece-8781-23e021a8d990
export EQUIPMENT_NAME="Sensor_block:T&LQ:1138260"
export EQUIPMENT_SOURCE="3TYhTs\$S924vrYvWDC_1_z"
export EQUIPMENT_TAG=air
export EQUIPMENT_ISLOCATEDIN=233ffa56-c569-4ece-8781-23e021a8d990
export TEST_ID=7890
export FILE_ID=42be5ad2-fb95-4a3b-b4b9-c1a87699b711
elif [ $1 == 'dev' ]
then
export APIURL=my.api.com
export FLOOR_NAME=1OG
export SPACE_NAME="1.001"
export BUILDINGIDB=03fjvA5B1CWOG33uprLUQT
export SPACE_ISPARTOF=6bfed7de-ccbc-4780-b834-5d8cbf73560f
export DEVICE_NAME="Sensor_block:T&LQ:1138260"
export DEVICE_SOURCE="3TYhTs\$S924vrYvWDC_1_z"
export DEVICE_TAG=air
export DEVICE_ISLOCATEDIN=37124033-c860-43d0-b468-92b58198fbcb
export EQUIPMENT_NAME="Sensor_block:T&LQ:1138260"
export EQUIPMENT_SOURCE="3TYhTs\$S924vrYvWDC_1_z"
export EQUIPMENT_TAG=air
export EQUIPMENT_ISLOCATEDIN=37124033-c860-43d0-b468-92b58198fbcb
export TEST_ID=1234
export FILE_ID=2f6a1ae7-6a88-41a8-b2ba-bbf6f06ccf63
fi
export TARGETAWSACCOUNT=$1
export TOKEN_ENDPOINT=https://myoauthserver.com/oauth/token
export TOKEN_AUDIENCE=https://api.myapplication.com/
export TOKEN_DEFAULT=$(node createToken.js clientDefault)
echo $TOKEN_DEFAULT
export TOKEN_ALICE=$(node createToken.js clientAlice)
echo $TOKEN_ALICE
export TOKEN_BOB=$(node createToken.js clientBob)
echo $TOKEN_BOB
export TOKEN_AUTH=$(node createTokenAuth.js)
echo $TOKEN_AUTH
echo $API_URL
export LOG_REQUESTS=true
protractor test_config.js --suite $TARGETAWSACCOUNT
##protractor test_config.js
Configs
To configure the protractor you will need the configs
config.js
The file where the environment variables are injected into the JS
require('dotenv').config();
module.exports = {
seleniumAddress: process.env.SELENIUM_ADDRESS,
issuer:{
endpoint: process.env.TOKEN_ENDPOINT,
audience: process.env.TOKEN_AUDIENCE,
audience_auth: process.env.AUDIENCE_AUTH
},
params: {
apiUrl: process.env.APIURL,
buildingIdB: process.env.BUILDINGIDB,
floorName: process.env.FLOOR_NAME,
spaceName: process.env.SPACE_NAME,
spaceSource: process.env.SPACE_SOURCE,
spaceIsPartOf: process.env.SPACE_ISPARTOF,
deviceName: process.env.DEVICE_NAME,
deviceSource: process.env.DEVICE_SOURCE,
deviceTag: process.env.DEVICE_TAG,
deviceIsLocatedIn: process.env.DEVICE_ISLOCATEDIN,
equipName: process.env.EQUIPMENT_NAME,
equipSource: process.env.EQUIPMENT_SOURCE,
equipTag: process.env.EQUIPMENT_TAG,
equipIsLocatedIn: process.env.EQUIPMENT_ISLOCATEDIN,
testID: process.env.TEST_ID,
fileID: process.env.FILE_ID
},
clientDefault: {
clientId: process.env.CLIENT_ID,
clientSecret: process.env.CLIENT_SECRET
},
clientAlice: {
clientId: process.env.ALICE_CLIENT_ID,
clientSecret: process.env.ALICE_CLIENT_SECRET
},
clientBob: {
clientId: process.env.BOB_CLIENT_ID,
clientSecret: process.env.BOB_CLIENT_SECRET
},
clientAuth: {
clientId: process.env.CLIENT_ID_AUTH,
clientSecret: process.env.CLIENT_SECRET_AUTH
},
token:{
default: process.env.TOKEN_DEFAULT,
alice: process.env.TOKEN_ALICE,
bob: process.env.TOKEN_BOB,
auth: process.env.TOKEN_AUTH
},
target:{
url: process.env.URL,
auth_url: process.env.API_AUTH_URL
}
}
test_config.js
This is the configuration file used by protractor for managing any config parameter used globally within the web application.
Uses the config.js file
require('dotenv').config();
let options = require("./config");
var Jasmine2HtmlReporter = require('protractor-jasmine2-html-reporter');
exports.config = {
framework: 'jasmine',
seleniumAddress: options.seleniumAddress,
//specs is used for when calling protractor without passing suites to run
specs: ['spec/API_Widgets_tests.js',
'spec/Functional_tests.js',
'spec/API_CRUD_tests.js',
'spec/Negative_tests.js',
'spec/Filters_tests.js',
'spec/Negative_Filters_tests.js',
'spec/UI_tests_Main.js',
'spec/UI_tests.js',
'spec/UI_tests_files.js',
'spec/UI_tests_NavVis',
'spec/Auth_UI_tests.js'],
//'spec/UI_tests_NavVis.js'],
// //'spec/UI_tests_api_reference.js'],
//specs: ['spec/API_CRUD_tests.js'],
//Suites defined to run tests on Dev or Stage
suites: {
//dev: 'spec/*.js',
// dev: ['spec/Functional_tests.js',
// 'spec/Negative_tests.js',
// 'spec/Filters_tests.js',
// 'spec/Negative_Filters_tests.js',
// // 'spec/UI_tests.js',
// // 'spec/UI_tests_files.js',
// // 'spec/UI_tests_Main.js',
// // 'spec/UI_tests_template.js',
// 'spec/API_Widgets_tests.js',
// 'spec/API_CRUD_tests.js',
// 'spec/Auth_UI_tests.js'],
dev: ['spec/Auth_UI_tests.js'],
// stage: ['spec/API_CRUD_tests.js',
// 'spec/Negative_tests.js',
// 'spec/Filters_tests.js',
// 'spec/Negative_Filters_tests.js',
// 'spec/API_Widgets_tests.js',
// 'spec/UI_tests.js',
// 'spec/UI_tests_files.js',
// 'spec/API_CRUD_tests.js',
// 'spec/UI_tests_Main.js',
// 'spec/Auth_UI_tests.js']
stage: ['spec/Auth_UI_tests.js']
},
onPrepare: function () {
browser.driver.manage().window().maximize();
jasmine.getEnv().addReporter(new Jasmine2HtmlReporter({
savePath: './test/reports/',
screenshotsFolder: 'images',
takeScreenshots: true,
takeScreenshotsOnlyOnFailures: true,
fixedScreenshotName: true,
showPassed: false,
filePrefix: 'SeleniumReport'
// consolidate: false,
// consolidateAll: false
}));
var AllureReporter = require('./node_modules/jasmine-allure-reporter');
jasmine.getEnv().addReporter(new AllureReporter({
resultsDir: 'test/allure-results/'
}));
var jasmineReporters = require('./node_modules/jasmine-reporters');
jasmine.getEnv().addReporter(new jasmineReporters.JUnitXmlReporter({
consolidateAll: true,
savePath: 'test/reports',
filePrefix: 'xmloutput'
})
)
},
ignoreUncaughtExceptions: true,
capabilities: {
browserName: 'chrome',
noGlobals: false,
binary: 'C:/Program Files/ChromePortable/App/Chrome-bin/chrome.exe',
//shardTestFiles: true,
//maxInstances:7,
chromeOptions: {
useAutomationExtension: false,
args: ["--headless",
"--disable-gpu",
"--disable-browser-side-navigation",
"--disable-infobars",
"--no-sandbox",
"--window-size=1200,900"]
// args: [ "--window-size=1400,900" ]
}
},
// capabilities: {
// browserName: 'firefox',
// 'moz:firefoxOptions': {
// args: ['--verbose'],
// binary: 'C:/Program Files (x86)/Google/Chrome/Application/chrome.exe'
// //Provide binary location to avoid potential binary not found errors
// //Need to start cmd via admin mode to avoid permission error
// }
// },
// capabilities: {
// browserName: 'chrome',
// noGlobals: false,
// //shardTestFiles: true,
// //maxInstances:7,
// chromeOptions: {
// useAutomationExtension: false,
// args: ["--headless",
// "--disable-gpu",
// "--disable-browser-side-navigation",
// "--disable-infobars",
// "--no-sandbox",
// "--window-size=1200,900"]
// // args: [ "--window-size=1400,900" ]
// }
// },
// TODO: Initial work proves multi browser testing works.
// multiCapabilities: [
// {'browserName': 'chrome',
// 'chromeOptions': {
// 'args': ['disable-infobars']
// }
// },
// {'browserName': 'firefox',
// 'moz:firefoxOptions': {
// 'args': ['--safe-mode']
// }
// }
// ],
// Options to be passed to Jasmine.
jasmineNodeOpts: {
defaultTimeoutInterval: 90000, //increased to 30 seconds
},
params: {
gWidgetID: 'empty',
gCampusID: 'empty'
}
}
Example test
In the test the injected environment variables can be retireved via config.params
Example:
config.params.apiUrl
require('dotenv').config();
var config = require('../lib/config');
var common = require('../lib/common');
const { element, browser } = require('protractor');
var EC = protractor.ExpectedConditions;
describe('UI Tests - Files', function() {
//Initialization of test case
common.SetupInitialize("UI_tests_files.js");
//Login, Navigate to Building B files, validate that it loads
it('TCER_ID-195611: Building B - Loads files', function () {
apiUrl = config.params.apiUrl;
var fPlans = element.all(by.cssContainingText('span', '2D Plans')).first();
var fsvg = element.all(by.cssContainingText('td', '.svg')).first();
var fThisIs = element.all(by.cssContainingText('td', 'This is a')).first();
browser.get(apiUrl + 'app/building/' + config.params.buildingIdB + '/files');
browser.wait(EC.visibilityOf(fPlans, 10000));
fPlans.click();
browser.wait(EC.visibilityOf(fsvg, 9000));
expect(fsvg).not.toBe(null);
browser.wait(EC.visibilityOf(fThisIs, 15000));
expect(fThisIs).not.toBe(null);
});
/*
* Confirm details content is present and viable for ifc file
* */
it('Building B - Details content is present',() => {
element.all(by.cssContainingText('td', '.svg')).first().click();
browser.sleep(1000);
browser.wait(EC.visibilityOf(element.all(by.css('.marengo-double-left')).first(), 15000));
element.all(by.css('.marengo-double-left')).first().click();
var detailsDrawer = element(by.css('.right-drawer-border.float-left'));
expect(detailsDrawer.isPresent()).toBe(true);
browser.sleep(1000);
var filterBox = element(by.css('.filter-box'));
browser.wait(EC.visibilityOf(filterBox),15000);
expect(filterBox.isPresent()).toBe(true);
expect(filterBox.getText()).toBe('System generated floorplan');
expect(element(by.css('.img-thumbnail')).isPresent()).toBe(true);
var labels = element.all(by.css('.col-form-label'));
var texts = element.all(by.css('.form-text'));
expect(labels.get(2).getText()).toBe('Last update');
expect(labels.get(3).getText()).toBe('Updated By');
expect(labels.get(4).getText()).toBe('Size');
expect(labels.get(5).getText()).toBe('Version');
expect(labels.get(6).getText()).toBe('Source IFC:');
//expect(texts.get(5).getText()).toContain('buildingB.ifc'); <- issues on dev with name of file
element(by.css('.marengo-double-right')).click();
browser.sleep(1000);
element(by.cssContainingText('.files-breadcrumb', 'Building Files')).click();
browser.sleep(3000);
var columns = element.all(by.css('.ui-sortable-column'));
browser.wait(EC.visibilityOf(columns.get(0)),9000);
columns.get(0).click();
expect(columns.get(0).isPresent()).toBe(true);
});
/*
* IFC that is source for should not be able to be deleted.
* */
it('Building B - check ifc delete option', function() {
browser.sleep(3000);
var ifcFile = element(by.cssContainingText('td', '.ifc'));
browser.wait(EC.visibilityOf(ifcFile),15000);
ifcFile.click();
browser.sleep(4000);
element(by.cssContainingText('.nav-item-title', 'More')).click();
browser.wait(EC.presenceOf(element(by.css('.navigator-delete')) ),17000);
//dropdown-item-icon navigator-delete ng-star-inserted
browser.sleep(3500);
expect(element(by.cssContainingText('.dropdown-item.disabled', 'Delete')).isPresent()).toBe(true);
});
/*
* Renaming of building files
* Ensure that file name changes are propogated through both rename option and edit option
* */
describe('Building B - Rename functions', function(){
it ('Building B - rename file via More Rename button', function(){
var ifcFile = element(by.cssContainingText('td', '.ifc'));
browser.wait(EC.visibilityOf(ifcFile),15000);
ifcFile.click();
element(by.cssContainingText('.nav-item-title', 'More')).click();
element(by.cssContainingText('.dropdown-item-text', 'Rename')).click();
var displayName = element.all(by.css('input[name="displayName"]')).first();
var btnPrimary = element(by.css('.btn-primary'));
browser.wait(EC.visibilityOf(displayName, 10000));
displayName.clear();
displayName.sendKeys('buildingB1');
btnPrimary.click();
browser.sleep(1000);
browser.wait(EC.visibilityOf(element(by.cssContainingText('.toast-message', 'Rename successful')), 15000));
browser.wait(EC.visibilityOf(element(by.cssContainingText('td', 'buildingB1.ifc')), 15000));
expect(ifcFile.getText()).toBe('buildingB1.ifc');
});
it ('Building B - rename file back via More Rename button', function(){
browser.sleep(1000);
var displayName = element.all(by.css('input[name="displayName"]')).first();
var btnPrimary = element(by.css('.btn-primary'));
var ifcFile = element(by.cssContainingText('td', '.ifc'));
element(by.cssContainingText('.nav-item-title', 'More')).click();
element(by.cssContainingText('.dropdown-item-text', 'Rename')).click();
browser.wait(EC.visibilityOf(displayName, 3000));
displayName.clear();
displayName.sendKeys('buildingB');
//browser.wait(EC.invisibilityOf(element.all(by.css('.toast-message.ng-star-inserted')).first()),15000);
browser.wait(EC.visibilityOf(element(by.cssContainingText('.toast-message', 'Rename successful')), 15000));
btnPrimary.click();
browser.wait(EC.visibilityOf(element(by.cssContainingText('td', 'buildingB.ifc')), 15000));
expect(ifcFile.getText()).toBe('buildingB.ifc');
browser.sleep(1000);
});
it ('Building B - rename file via More Edit button', function(){
browser.sleep(1000);
var displayName = element.all(by.css('input[name="displayName"]')).first();
var btnPrimary = element(by.css('.btn-primary'));
var ifcFile = element(by.cssContainingText('td', '.ifc'));
browser.wait(EC.visibilityOf(element(by.cssContainingText('.nav-item-title', 'More')), 15000));
element(by.cssContainingText('.nav-item-title', 'More')).click();
element(by.cssContainingText('.dropdown-item-text', 'Edit')).click();
browser.wait(EC.visibilityOf(displayName, 3000));
displayName.clear();
displayName.sendKeys('buildingB1');
displayName.click();
browser.sleep(5000);
browser.wait(EC.visibilityOf(btnPrimary),14000);
btnPrimary.click();
browser.wait(EC.visibilityOf(element.all(by.cssContainingText('.col', 'buildingB1.ifc')).first()),25000);
var arrowRight = element(by.css(".marengo-double-right"));
expect(ifcFile.getText()).toBe('buildingB1.ifc');
});
it ('Building B - rename file back from More Edit button', function(){
browser.sleep(2000);
var displayName = element.all(by.css('input[name="displayName"]')).first();
var btnPrimary = element(by.css('.btn-primary'));
var ifcFile = element(by.cssContainingText('td', '.ifc'));
element(by.cssContainingText('.nav-item-title', 'More')).click();
browser.wait(EC.visibilityOf(element(by.cssContainingText('.dropdown-item-text', 'Edit'))),15000);
element(by.cssContainingText('.dropdown-item-text', 'Edit')).click();
browser.sleep(1000);
browser.wait(EC.visibilityOf(displayName, 7000));
displayName.clear();
displayName.sendKeys('buildingB');
browser.sleep(1000);
expect(btnPrimary.isEnabled()).toBe(true);
btnPrimary.click();
browser.wait(EC.visibilityOf(element.all(by.cssContainingText('.col', 'buildingB.ifc')).first()),25000);
//var arrowRight = element(by.css(".marengo-double-right"));
//arrowRight.click();
});
it ('Building B - check file name is back to default text', function(){
var ifcFile = element(by.cssContainingText('td', '.ifc'));
var arrowRight = element(by.css(".marengo-double-right"));
arrowRight.isPresent().then(function(result) {
if (result) {
browser.wait(EC.visibilityOf(arrowRight),25000);
arrowRight.click();
browser.wait(EC.visibilityOf(element(by.cssContainingText('td', 'buildingB.ifc')), 15000));
expect(ifcFile.getText()).toBe('buildingB.ifc');
browser.sleep(1000);
}
});
});
/* Neg case - Long building names
* Ensure that building names past api allowable length result in an error
* */
it('Building B - negative - rename file - check toast message', function() {
console.log('Building B - negative - rename file - check toast message');
var ifcFile = element(by.cssContainingText('td', '.ifc'));
var toastMessage = element(by.cssContainingText('.toast-message', 'Unable to update file information'));
browser.wait(EC.visibilityOf(ifcFile),10000);
ifcFile.click();
element(by.cssContainingText('.nav-item-title', 'More')).click();
element(by.cssContainingText('.dropdown-item-text', 'Edit')).click();
browser.sleep(1500);
var displayName = element.all(by.css('input[name="displayName"]')).first();
browser.wait(EC.visibilityOf(displayName, 9000));
displayName.sendKeys('MMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMHMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMM');
//change file name to a value we know will fail
browser.wait(EC.visibilityOf(element(by.css('.btn-primary'))),25000);
element(by.css('.btn-primary')).click();
//TODO:forced to add .sleep method below due to high delay in response from application
browser.sleep(4000);
browser.wait(EC.visibilityOf(toastMessage, 35000));
expect(toastMessage.getText()).toBe('Unable to update file information');
toastMessage.click();
//close toast message
});
it('Building B - negative - rename file - verify default name', function() {
var ifcFile = element(by.cssContainingText('td', '.ifc'));
var arrowRight = element(by.css(".marengo-double-right"));
browser.wait(EC.visibilityOf(arrowRight),5000);
arrowRight.click();
// close side menu
browser.wait(EC.visibilityOf(ifcFile),20000);
expect(ifcFile.getText()).toBe('buildingB.ifc');
});
it('Building B - add file description', function() {
element(by.cssContainingText('.nav-item-title', 'More')).click();
element(by.cssContainingText('.dropdown-item-text', 'Edit')).click();
browser.sleep(1500);
var txtDescription = element(by.name('description'));
browser.wait(EC.visibilityOf(txtDescription),7000);
txtDescription.clear();
txtDescription.sendKeys('description text');
element(by.cssContainingText('.btn-primary', 'Save')).click();
browser.wait(EC.visibilityOf(element(by.linkText('History'))), 69000);
expect(element(by.id('description')).getText()).toBe('description text');
browser.sleep(3000);
});
it('Building B - remove file description', function() {
element(by.cssContainingText('.nav-item-title', 'More')).click();
element(by.cssContainingText('.dropdown-item-text', 'Edit')).click();
browser.sleep(1500);
var txtDescription = element(by.name('description'));
browser.wait(EC.visibilityOf(txtDescription),7000);
txtDescription.clear();
txtDescription.sendKeys('a');
txtDescription.sendKeys(protractor.Key.BACK_SPACE);
txtDescription.clear();
element(by.cssContainingText('.btn-primary', 'Save')).click();
browser.wait(EC.visibilityOf(element(by.linkText('History'))), 39000);
expect(element(by.id('description')).getText()).toBe('');
expect(element(by.css('.form-text.text-muted')).getText()).toBe('No description yet');
});
});
/*
* Create Folders
* From Root directory
* Create folder 1 and folder 2 , via the folder creation menu
* assert that folders exist in table and in side bar
* */
describe('Building B - Create functions', function(){
it ('Building B - create folders', function(){
browser.sleep(3000);
var folder1 = element(by.cssContainingText('td', 'folder1'));
var folder2 = element(by.cssContainingText('td', 'folder2'));
var btnNew = element(by.cssContainingText('.nav-item-title', 'New'));
browser.wait(EC.visibilityOf(btnNew),20000);
btnNew.click();
element(by.cssContainingText('.dropdown-item-text', 'Create New Folder')).click();
browser.wait(EC.visibilityOf(element(by.css('input[name="folderName"]'))),6500);
element(by.css('input[name="folderName"]')).sendKeys('folder1');
element(by.cssContainingText('.btn-primary', 'Create')).click();
browser.sleep(2000);
browser.wait(EC.visibilityOf(folder1) ,20000);
expect(folder1.isPresent()).toBe(true);
element(by.cssContainingText('.nav-item-title', 'New')).click();
element(by.cssContainingText('.dropdown-item-text', 'Create New Folder')).click();
browser.wait(EC.visibilityOf(element(by.css('input[name="folderName"]'))),4000);
element(by.css('input[name="folderName"]')).sendKeys('folder2');
browser.wait(EC.visibilityOf(element.all(by.cssContainingText('.btn-primary', 'Create')).first(), 6000));
element(by.cssContainingText('.btn-primary', 'Create')).click();
browser.sleep(2000);
browser.wait(EC.visibilityOf(folder2), 20000);
//check folder is in table
expect(folder2.isPresent()).toBe(true);
// check folder is in sidebar
expect(element(by.cssContainingText('span', 'folder2')).isPresent()).toBe(true);
});
/*
* Trigger navigation via folder icon click
* get list of folders
* click first folder ( should be 2D Floorplans)
* confirm we were navigated by folder contents
* */
it('Building B - navigate through table folder icon click', function() {
var folders = $$('a.table-folder-icon');
var fPlans = element.all(by.cssContainingText('span', '2D Plans')).first();
// There should be three folders currently in the table
expect(folders.count()).toBe(3);
// navigate to 2D Floorplans folder through click on the folder icon
fPlans.click();
//folders.get(0).click();
browser.wait(EC.visibilityOf(element.all(by.cssContainingText('td', '.svg')).first(), 10000));
// expect we have loaded the contents of the folder
expect(element.all(by.cssContainingText('td', '.svg'))).not.toBe(null);
});
/*
* Trigger navigation via breadcrumb
* Analyze bread crumbs in current path ( should be started in 2d floor plans folder)
* click breadcrumb to go to building files
* confirm we were navigated by folder contents
* confirm breadcrumbs were rebuilt properly.
* */
it ('Building B - navigate through breadcrumbs', function() {
// get list of breadcrumbs, in the current state there should be 2
var crumbs = $$('.files-breadcrumb');
expect(crumbs.count()).toBe(2);
expect(crumbs.get(0).getText()).toBe('Building Files');
expect(crumbs.get(1).getText()).toContain('\/\n' + 'Generated 2D Plans');
element(by.cssContainingText('.files-breadcrumb', 'Building Files')).click();
//Expect navigation back to root folder - Table
browser.wait(EC.visibilityOf(element.all(by.cssContainingText('td', '.ifc')).first(), 10000));
expect(element(by.cssContainingText('td', '.ifc')).isPresent()).toBe(true);
// Expect crumbs to be 1 long after navigation
var newCrumbs = $$('.files-breadcrumb');
expect(newCrumbs.count()).toBe(1);
expect(newCrumbs.get(0).getText()).toBe('Building Files');
});
/**
* Creation of a sub-folder
* select folder 1, choose create new folder
* interact with folder modal , provide name and confirmation
* after- confirm that the folder exists
**/
it('Building B - Create Folder inside folder - from within folder', function() {
// select folder 1 and click
element.all(by.cssContainingText('span', 'folder1')).first().click();
browser.sleep(1000);
// select create new folder
element(by.cssContainingText('.nav-item-title', 'New')).click();
element(by.cssContainingText('.dropdown-item-text', 'Create New Folder')).click();
browser.sleep(1000);
element(by.css('input[name="folderName"]')).sendKeys('folderInsideFolder');
browser.sleep(1000);
element(by.cssContainingText('.btn-primary', 'Create')).click();
browser.sleep(2000);
// Folder should be created check for folder presence in folder 1
var folderInsideFolder = element.all(by.css('td.table-text-truncate')).first();
browser.wait(EC.visibilityOf(folderInsideFolder, 10000));
expect(folderInsideFolder.getText()).toBe('folderInsideFolder');
element.all(by.cssContainingText('span', 'Building Files')).first().click();
});
});
describe('Building B - Upload/Copy/Move functions',function(){
/**
* disabling this test until we solve the challenge of uploading files in the pipeline
* Navigate to folder 1 clicks 'upload' option, select ifc file, checks if 'upload' button is enabled after
* selecting a file, clicks 'upload', then uploads another file (text file)
* Check for file presence
* */
if(config.params.targetAwsAccount =="dev" ){
xit('upload ifc file to folder', function() {
var path = require('path');
var remote = require('selenium-webdriver/remote');
browser.setFileDetector(new remote.FileDetector());
element.all(by.cssContainingText('span', 'folder1')).first().click();
browser.sleep(2000);
var textFileToUpload = './extras/testinput.txt';
var ifcFileToUpload = './extras/working.ifc';
absolutePath = path.resolve(__dirname, textFileToUpload);
absolutePath2 = path.resolve(__dirname, ifcFileToUpload);
element(by.cssContainingText('.nav-item-title', 'New')).click();
element(by.cssContainingText('.dropdown-item-text', 'Upload')).click();
browser.sleep(1000);
browser.wait(EC.visibilityOf(element(by.css('input[type="file"]'))) ,5000);
element(by.css('input[type="file"]')).sendKeys(absolutePath2);
browser.sleep(1000);
var uploadButton = element(by.css('.btn-primary'));
expect(uploadButton.isEnabled()).toBe(true);
uploadButton.click();
browser.wait(EC.visibilityOf($('.toast-message')),10000);
expect($('.toast-message').getText()).toBe('File working.ifc uploaded');
browser.wait(EC.invisibilityOf($('.toast-message')),10000);
//browser.wait(EC.visibilityOf(element(by.cssContainingText('.toast-message', 'File working.ifc uploaded')), 10000));
//browser.wait(EC.invisibilityOf(element(by.cssContainingText('.toast-message', 'File working.ifc uploaded')), 10000));
});
xit('upload txt file to folder', function() {
var path = require('path');
var remote = require('selenium-webdriver/remote');
browser.setFileDetector(new remote.FileDetector());
var uploadButton = element(by.css('.btn-primary'));
var textFileToUpload = './extras/testinput.txt';
var ifcFileToUpload = './extras/working.ifc';
absolutePath = path.resolve(__dirname, textFileToUpload);
absolutePath2 = path.resolve(__dirname, ifcFileToUpload);
element(by.cssContainingText('.nav-item-title', 'New')).click();
element(by.cssContainingText('.dropdown-item-text', 'Upload')).click();
browser.sleep(1000);
browser.wait(EC.visibilityOf(element(by.css('input[type="file"]'))) ,5000);
element(by.css('input[type="file"]')).sendKeys(absolutePath);
browser.sleep(1000);
uploadButton.click();
browser.wait(EC.visibilityOf($('.toast-message')),10000);
expect($('.toast-message').getText()).toBe('File testinput.txt uploaded');
browser.wait(EC.invisibilityOf($('.toast-message')),10000);
//expect($('.toast-message').getText()).toBe('File textinput.txt uploaded');
//browser.wait(EC.visibilityOf(element(by.cssContainingText('.toast-message', 'File testinput.txt uploaded')), 10000));
console.log("files were uploaded");
});
};
/*
* Currently working test disabled until clean up implemented in next test
* */
it('Building B - copy file', function() {
element.all(by.cssContainingText('span', 'Building Files')).first().click();
browser.sleep(1000);
var ifcFile = element.all(by.cssContainingText('td', '.ifc')).first();
browser.wait(EC.visibilityOf(ifcFile, 10000));
ifcFile.click();
browser.wait(EC.visibilityOf(element.all(by.cssContainingText('.nav-item-title', 'More')).first(), 1000));
element(by.cssContainingText('.nav-item-title', 'More')).click();
//note: using a browser.wait here instead of .sleep causes timeout.
browser.sleep(1000);
var cutButton = element(by.css('.marengo-copy'));
cutButton.click();
browser.wait(EC.visibilityOf(element.all(by.cssContainingText('td', 'Copy of buildingB.ifc')).first(), 1000));
browser.wait(EC.visibilityOf(element.all(by.cssContainingText('td', '.ifc')).first(), 1000));
let ifcFiles = element.all(by.cssContainingText('td', '.ifc'));
expect(ifcFiles.count()).toBe(2);
browser.sleep(1000);
});
/*
* Inprogress soec
* */
it('Building B - move file', function() {
apiUrl = config.params.apiUrl;
browser.get(apiUrl + 'app/building/' + config.params.buildingIdB +'/files');
browser.sleep(5000);
let ifcFile = element(by.cssContainingText('td', 'Copy of'));
expect(ifcFile).not.toBe(null);
browser.wait(EC.visibilityOf(ifcFile, 14000));
ifcFile.click();
browser.wait(EC.visibilityOf(element(by.cssContainingText('.nav-item-title', 'More')), 14000));
element(by.cssContainingText('.nav-item-title', 'More')).click();
//note: using a browser.wait here instead of .sleep causes timeout.
var moveButton = element(by.cssContainingText('.dropdown-item-text', 'Move to'));
expect(moveButton).not.toBe(null);
moveButton.click();
// Wait for modal here.
browser.wait(EC.visibilityOf(element.all(by.cssContainingText('div', 'Move Files to')).first(), 15000));
browser.wait(EC.visibilityOf(element(by.cssContainingText('.modal-tree', 'folder1')), 15000));
// wait for tree content to load - need a better check
let target = element.all(by.cssContainingText('.modal-tree', 'folder1')).last();
target.click();
let moveBtn = element.all(by.cssContainingText('button', 'Move'));
moveBtn.click();
//browser.sleep(10000);
browser.wait(EC.visibilityOf(element(by.cssContainingText('.toast-message', 'Move successful')), 15000));
browser.wait(EC.invisibilityOf(element(by.cssContainingText('td', 'Copy of')), 15000));
browser.sleep(2000);
//Verify that item is not in current folder
var detailsDrawer = element(by.cssContainingText('td', 'Copy of'));
expect(detailsDrawer.isPresent()).toBe(false);
});
it('Building B - move file - verify move', function() {
let ifcFile = element(by.cssContainingText('td', 'Copy of'));
let folder1 = element.all(by.cssContainingText('span', 'folder1')).first();
//navigate to folder 1 and validate it is there.
browser.wait(EC.invisibilityOf(ifcFile),9000);
browser.wait(EC.visibilityOf(folder1, 10000));
folder1.click();
browser.wait(EC.visibilityOf(ifcFile, 10000));
expect(ifcFile.isPresent()).toBe(true);
//go back to root for next test
element.all(by.cssContainingText('span', 'Building Files')).first().click();
});
/*
* delete of Folders
* clicks folder 2, and deletes.
* Clicks folders 1 and deletes
*
* */
it('Building B - delete folder', function() {
browser.sleep(1000);
browser.wait(EC.visibilityOf(element(by.cssContainingText('td', 'folder2')), 5000));
var folder = element(by.cssContainingText('td', 'folder2'));
folder.click();
element(by.cssContainingText('.nav-item-title', 'More')).click();
var deleteButton = element(by.css('.navigator-delete'));
deleteButton.click();
browser.sleep(1000);
element(by.css('.btn-danger')).click();
browser.wait(EC.visibilityOf(element(by.cssContainingText('.toast-message', 'Item deleted')), 5000));
browser.wait(EC.invisibilityOf(element(by.cssContainingText('.toast-message', 'Item deleted')), 5000));
browser.sleep(2000);
expect(folder.isPresent()).toBe(false);
browser.wait(EC.visibilityOf(element(by.cssContainingText('td', 'folder1')), 5000));
folder = element(by.cssContainingText('td', 'folder1'));
folder.click();
element(by.cssContainingText('.nav-item-title', 'More')).click();
deleteButton = element(by.css('.navigator-delete'));
deleteButton.click();
browser.sleep(1000);
element(by.css('.btn-danger')).click();
browser.wait(EC.visibilityOf(element(by.cssContainingText('.toast-message', 'Item deleted')), 5000));
browser.wait(EC.visibilityOf(element(by.css('.ui-table-loading')), 5000));
let loader = element(by.css('.ui-table-loading'));
browser.wait(EC.not(EC.presenceOf(loader)));
browser.sleep(1000);
expect(folder.isPresent()).toBe(false);
});
/*
* upload without file path provided -
* clicks 'files' button, clicks 'upload' option, opens new window, checks if 'upload' button is disabled
* when no file is selected and then clicks 'cancel' button
* */
it ('wont allow upload without file path provided', function() {
element(by.cssContainingText('.nav-item-title', 'New')).click();
element(by.cssContainingText('.dropdown-item-text', 'Upload')).click();
//browser.sleep(1000);
var cancelButton = element(by.css('.btn-link'));
var uploadButton = element(by.css('.btn-primary'));
browser.wait(EC.visibilityOf(cancelButton),5000);
expect(uploadButton.isEnabled()).toBe(false);
expect(cancelButton.isPresent()).toBe(true);
cancelButton.click();
browser.sleep(1000);
expect(cancelButton.isPresent()).toBe(false);
});
});
/*
* Check files details - **Currently disabled as uploads not working on pipeline.
* first clicks ifc file, checks if drawer shows up, changes description of file, downloads file, clicks
* 'history' option, 'creation' option, then clicks 'create' option and waits until
* message banner shows up at the bottom of the page, then clicks text file, again checks if drawer is present,
* clicks 'history' option and since it is not an ifc file,
* 'creation' option should not be there, so it checks its presence
* */
if(config.params.targetAwsAccount =="dev" ){
xit('check file details', function() {
browser.sleep(2000);
browser.wait(EC.visibilityOf(element(by.cssContainingText('td', '.ifc'))),5000);
element(by.cssContainingText('td', '.ifc')).click();
browser.sleep(1000);
element.all(by.css('.marengo-double-left')).first().click();
var detailsDrawer = element(by.css('.right-drawer-border'));
expect(detailsDrawer.isPresent()).toBe(true);
browser.sleep(1000);
var downloadButton = element(by.css('i[title="Download File"]'));
browser.wait(EC.visibilityOf(downloadButton),5000);
expect(downloadButton.isEnabled()).toBe(true);
downloadButton.click();
browser.sleep(1000);
element(by.css('i[title="Edit file information"]')).click();
browser.sleep(1000);
var labels = element.all(by.css('.col-form-label'));
expect(labels.get(1).getText()).toBe('Description');
expect(labels.get(2).getText()).toBe('Last update');
expect(labels.get(3).getText()).toBe('Updated By');
expect(labels.get(4).getText()).toBe('Size');
expect(labels.get(5).getText()).toBe('Version');
expect(labels.get(6).getText()).toBe('Created');
var txtDescription = element(by.name('description'));
txtDescription.clear();
txtDescription.sendKeys('ifc file');
element(by.cssContainingText('.btn-primary', 'Save')).click();
browser.wait(EC.visibilityOf(element(by.linkText('History'))), 5000);
var historyButton = element(by.linkText('History'));
var createButton = element(by.linkText('Creation'));
expect(element(by.id('description')).getText()).toBe('ifc file');
expect(createButton.isPresent()).toBe(true);
historyButton.click();
createButton.click();
element(by.cssContainingText('.nav-item-title', 'Title')).click();
browser.sleep(1500);
var fileName = element(by.cssContainingText('.margin-top-offset', 'Selected IFC'));
expect(fileName.getText()).toBe('Selected IFC: buildingB.ifc');
//click cancel button
element(by.css('.btn.btn-link')).click();
browser.sleep(1500);
element.all(by.css('.marengo-double-right')).first().click();
browser.sleep(3000);
element(by.cssContainingText('.breadcrumb-item', 'Buildings')).click();
});
};
});
devops/tests/protractor.txt · Last modified: 2023/11/01 07:15 by skipidar
